PTO Drive Shafts for Boom Sprayers

Core Technology Quick Read: Boom Sprayer Powertrain Mechanics

In the vast agricultural expanses of Australia, whether operating a trailed broadacre boom sprayer or a self-propelled unit, the entire chemical application system relies on a single mechanical heartbeat: the tractor PTO shaft. Driving high-capacity diaphragm or centrifugal pumps, the driveline’s primary mandate is absolute rotational stability. Any velocity fluctuation—often caused by poorly balanced shafts or improperly phased U-joints—transmits destructive vibrations directly to the pump.

These micro-vibrations translate into erratic fluid pressure. In precision agriculture, fluctuating pressure means inconsistent droplet sizing at the nozzles, leading to devastating chemical drift, crop burning, or ineffective pest control. As a dedicated pto shaft manufacturer, EVER-POWER has engineered a specialized agricultural driveline series specifically for spraying applications, featuring high-speed dynamic balancing and extreme chemical-resistant shielding.

• 🛡️
  Advanced Chemical Anti-Corrosion Armor
  To combat the highly corrosive nature of UAN (Urea Ammonium Nitrate) liquid fertilizers and aggressive pesticides, our yokes and cross journals undergo specialized Dacromet and heavy epoxy treatments, increasing operational lifespan by over 300% in caustic environments compared to standard bare steel.
• ⚙️
  Constant Velocity (CV) Joint Integration
  Trailed sprayers require operators to execute sharp headland turns. Disengaging the PTO interrupts the spray pattern. Our 80-degree Wide-Angle CV joints allow the tractor to navigate extreme angles while maintaining perfectly smooth power delivery to the pump, eliminating un-sprayed blind spots.

Broadacre farming in Western Australia and New South Wales is characterized by massive land holdings requiring continuous, high-speed spraying operations that often span days and nights. When the weather window is optimal, the boom sprayer must perform flawlessly. The primary mechanical interface, the agricultural PTO shaft, acts as the absolute bottleneck for productivity. If the driveline lacks the torsional rigidity or the corrosion resistance to withstand constant exposure to chemical drift and abrasive dust, the entire operation grinds to a halt.

Furthermore, trailing sprayers equipped with air-assist technology (massive rear-mounted fans) introduce severe inertia challenges. When the tractor decelerates, the massive fan continues spinning, sending a destructive back-driving force through the driveline into the tractor’s transmission. EVER-POWER utilizes specialized Overrunning Clutches (Freewheels) directly integrated into the implement yoke. This allows the high-inertia fan to spool down safely and independently, shielding the entire powertrain from catastrophic gear shearing.

A leading pto shaft supplier must look beyond basic metalwork. Our engineering solutions incorporate ultra-thick-walled Rilsan-coated telescopic tubes to minimize sliding friction. As the tractor traverses uneven furrows and the distance between the drawbar and the pump changes constantly, this low-friction coating ensures the shaft telescopes effortlessly, drastically reducing axial thrust loads that would otherwise destroy the expensive bearings inside the sprayer’s input pump.

Driving the Boom Sprayer Pump

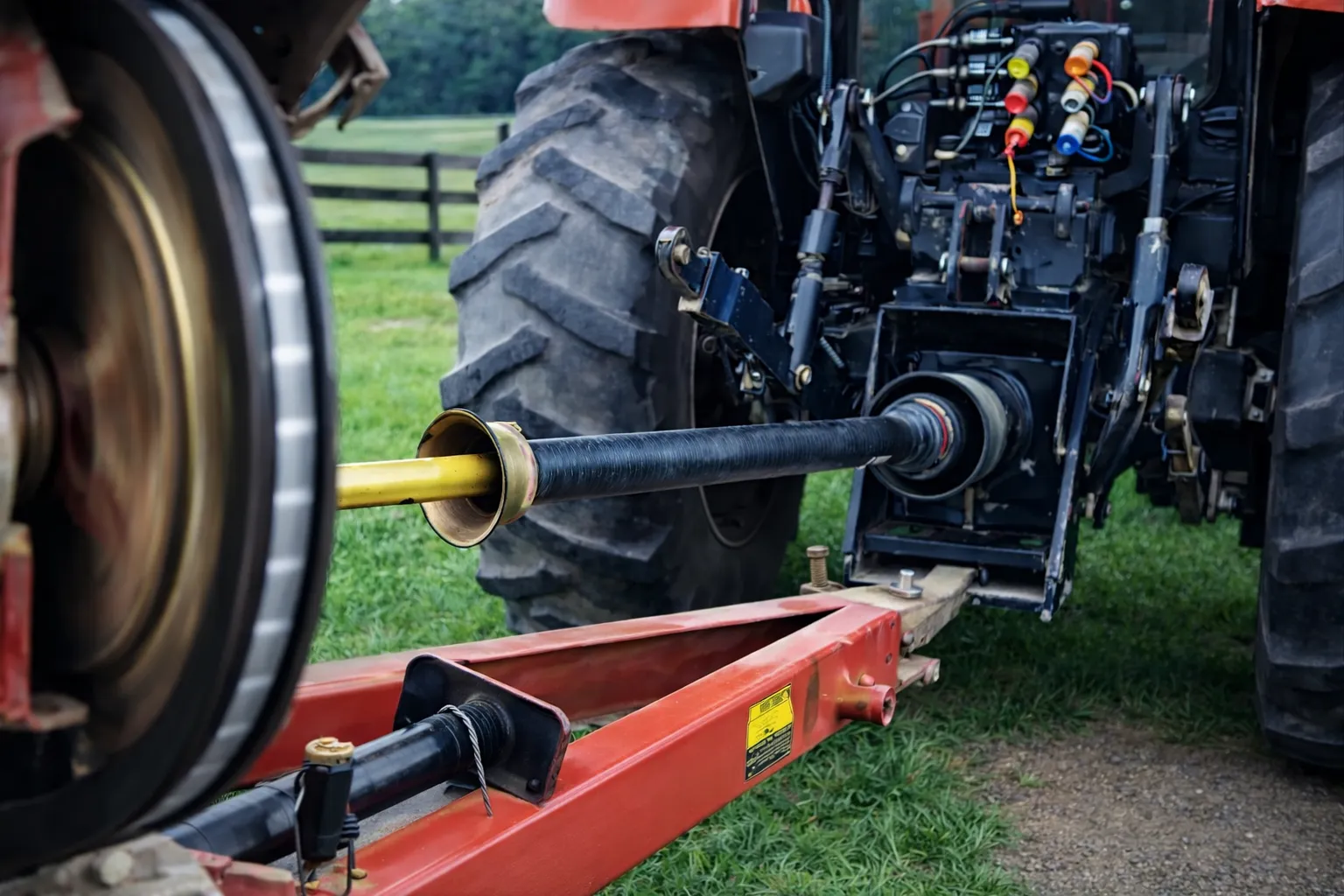

In an agricultural boom sprayer system, the tractor PTO shaft acts as the vital mechanical bridge bridging the gap between the tractor’s transmission output and the implement’s fluid pump. Located externally beneath the drawbar, this rotating assembly must endure constant telescopic shifting and harsh environmental exposure.

The Flow of Power: Mechanical energy generated by the tractor engine is output at a standardized 540 or 1000 RPM. The driveline locks onto this splined stub. The kinetic energy travels through the first universal joint (or CV joint), along the sliding telescopic tubes, through the rear joint, and directly into the input shaft of the diaphragm or centrifugal pump. The pump converts this rotational torque into intense hydraulic pressure, forcing the liquid chemical mixture from the holding tank, through the manifold, and out through hundreds of individual nozzles across the boom width.

Because spray nozzles require absolute pressure consistency to maintain uniform droplet size, the driveline must not introduce any mechanical “stutter” or vibration. This is why our precision-forged yokes and perfectly phased assemblies are non-negotiable for professional spraying operations.

Seamless Multi-Brand Replacement Matrix

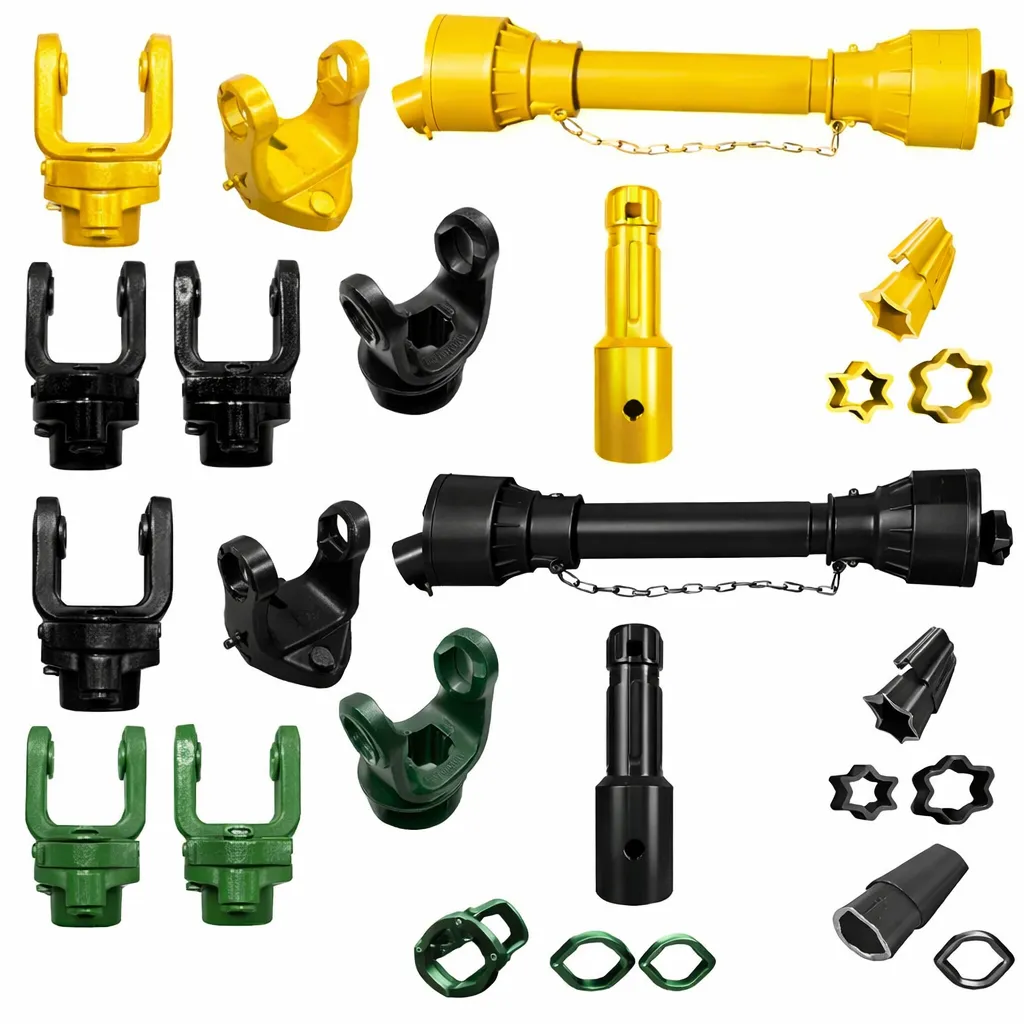

In the fast-paced agricultural contracting sector, waiting weeks for expensive imported OEM replacement parts is not an option. The PTO drive shafts engineered by EVER-POWER utilize internationally standardized tube geometries (Lemon, Triangular, Star, and Splined) and dimensionally precise cross journals to guarantee 100% plug-and-play interchangeability with your existing sprayer fleet.

Whether you require a complete Series 4 replacement for a Hardi trailed sprayer, or a replacement CV joint block to repair a Bondioli & Pavesi driveline on a Silvan orchard unit, our vast inventory and precision engineering ensure you get back into the paddock immediately.

Australia Local Industry Safety & Compliance Directives

Operating agricultural machinery across Australian states mandates rigorous adherence to specialized workplace safety frameworks. Driveline entanglement remains a critical hazard on farms, prompting bodies like SafeWork NSW and WorkSafe Victoria to enforce uncompromising shielding regulations.

All EVER-POWER pto shafts imported into Australia are meticulously designed to conform to the strict Australian Standard AS 1121.1:2007 (Agricultural tractor power take-off drive shafts and guards). Our complete shielding systems encapsulate all rotating elements from yoke to yoke. Coupled with heavy-duty anti-rotation restraint chains, our products ensure that operators working near the sprayer boom are completely protected from catastrophic entanglement, facilitating smooth compliance during unannounced SafeWork farm audits.

Safety First: Targeted Installation Steps for Sprayers

1. Power Isolation & Preparation: Shut down the tractor entirely. Remove the ignition key and engage the parking brake. Wire-brush any dried mud or rust from the tractor’s output spline and the sprayer’s pump input shaft. Apply a thin film of lithium grease.
2. Directional Orientation: Locate the tractor icon molded into the plastic safety guard. If your shaft features an Overrunning Clutch (Freewheel) for an air-assist fan, this heavy clutch assembly must be connected to the implement (sprayer pump) side.
3. Length Measurement & Trimming: Attach the implement and articulate the tractor to the tightest possible turning angle (minimum distance). If the shaft is too long, you must cut the inner metallic tube, outer metallic tube, and both plastic guards equally.
4. Deburring & Locking Engagement: Meticulously file the cut edges of the tubes to remove burrs that cause binding. Slide the yoke onto the spline while depressing the locking pin. Push and pull vigorously to ensure the locking ball is securely seated in the spline’s annular groove.
5. Restraint Chain Anchoring: Attach the anti-rotation chains to stationary metal points on both the tractor and the sprayer chassis. Leave enough slack to accommodate extreme turning angles without snapping the chain, but tight enough to prevent the plastic guard from rotating.

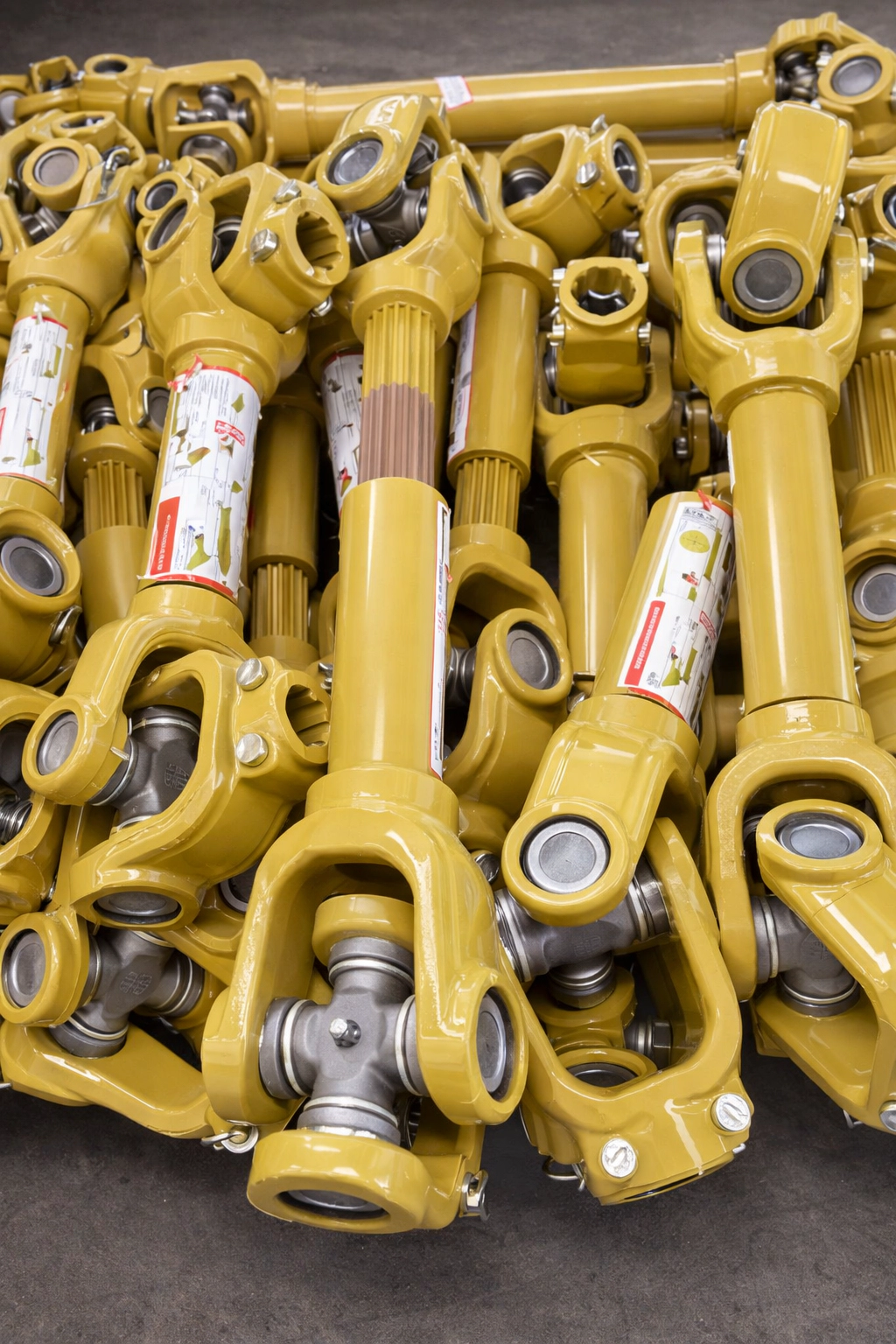

Our advanced CNC machining centers and automated assembly lines guarantee consistent, industrial-grade quality for global agricultural powertrain systems.

❓ Should I select a standard U-Joint or upgrade to a Wide-Angle (CV) joint for my boom sprayer?

Response: If your sprayer is “Mounted” (3-Point Hitch linkage), the implement moves synchronously with the tractor, keeping driveline angles minimal, so a standard U-joint is perfectly adequate. However, if your sprayer is “Trailed” (pulled via a drawbar), turning at the headlands creates extreme articulation angles. To execute sharp turns without disengaging the power and suffering spray pressure drops, we highly recommend equipping the tractor end with an 80-degree Constant Velocity (CV) joint to prevent severe driveline shuddering and pump bearing damage.

❓ The plastic safety guard chains broke. Can I operate the sprayer without anchoring them?

Response: Absolutely not. The fundamental purpose of the anti-rotation chains is to ensure the external plastic safety shield remains stationary while the heavy metal shaft spins at lethal speeds inside. Operating without anchored chains allows the guard to spin with the shaft. This poses an immediate, fatal entanglement hazard to operators approaching the spray booms, and is a direct violation of Australian Work Health and Safety (WHS) regulations.

❓ Can I upgrade my 6-spline shaft to a 21-spline shaft to handle higher torque demands?

Response: Dimensionally, we can easily manufacture a shaft with a 1-3/8″ 21-spline tractor yoke. However, 21-spline configurations are standardly associated with 1000 RPM PTO outputs. Before upgrading, you must verify two critical factors: First, your tractor must be capable of a 1000 RPM output mode. Second, and most importantly, your sprayer’s input pump must be rated to accept 1000 RPM. Forcing a 1000 RPM input into a pump designed strictly for 540 RPM will instantly over-pressurize and obliterate the internal diaphragms or impellers.
